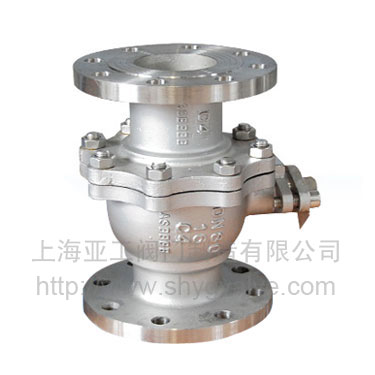

C4 steel ball valve

Product performance and features

C4 steel ball valves and nitric acid is special ball valve, is designed and developed by the workers in Shanghai special valve of nitric acid medium, C4 steel with good corrosion resistance in nitric acid. C4 (nitric acid is special ball valve) of steel ball valve ball is floating, under the effect of medium pressure, the fitness ball produce certain displacement and compression at the outlet seal surface, guarantee the outlet seal. C4 (nitric acid is special ball valve) of steel ball valve features: 1, small flow resistance, ball valve is the smallest of all valve fluid resistance in the class a, even reducing ball valve, the fluid resistance is small. 2, C4 (nitric acid is special ball valve) of steel ball valve sealing performance is good. Ball valve seat (ring) generally use the elastic materials such as teflon, easy to guarantee the seal, and valve sealing force with medium pressure increases. 3, C4 (nitric acid is special ball valve) of steel ball valve stem seal and reliable. When the ball valve open/close the valve stem only rotate 90 ° movement, so the valve stem packing seal is not easy to be destroyed, and the valve stem pour sealing sealing force with medium pressure increases. 4, do 90 ° rotation of ball valve opening and closing, so easy to achieve automatic control and remote control, ball valve electric device can be configured, pneumatic equipment, hydraulic equipment.

specification

Pressure rating: MpaClass150 PN1.6-10.0-600 lb: nominal diameter DN15 - DN250 1/2 "- 10" drive mode: handle, worm gear and worm, pneumatic, hydraulic, electric corresponding C4 model of steel ball valve: Q41F - 16 C4, Q41F - 25 C4, Q41F - 40 C4, Q41F - 64 C4, C4, Q41F Q41F - 100-100 lb (C4), Q41F - 300 lb (C4), Q41F - 600 lb (C4) applicable medium: nitric acid and other corrosive medium

The technical specification

Design standards: GB/T12237, API6D, ASME B16.34 structure length: GB/T12221, API6D, ASME B16.10 connecting flange: HG, GB, JB, API, ANSI, ISO, BS, DIN, NF, JIS test standard: JB/T9092, GB/T13927, API6D, API598

The main body material

Body and bonnet: C4 (00 cr14ni14si4) sphere: C4 (00 cr14ni14si4) stem: C4 (00 cr14ni14si4) seal: PTFE, RPTFE, PPL, PEEK...
