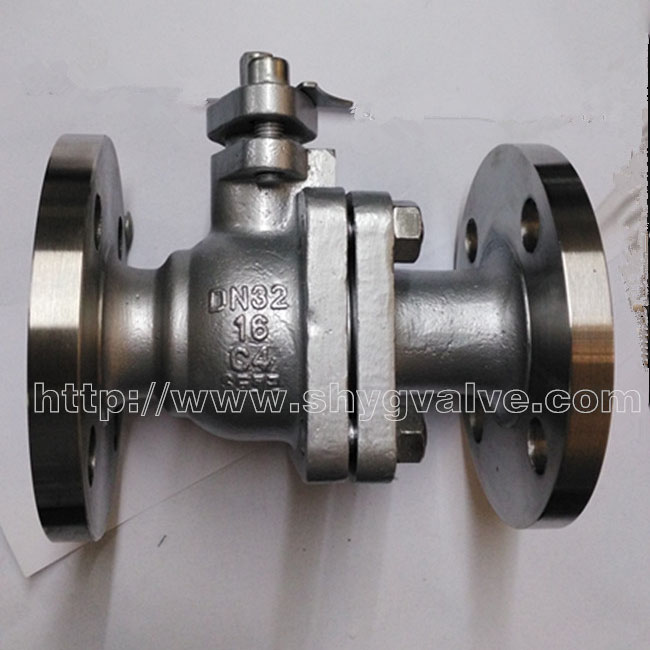

C4 steel valves

C4 steel ball valve product features:

Shanghai and the sphere of the floating type C4 steel ball valve is floating, under the effect of medium pressure, the fitness ball produce certain displacement and compression at the outlet seal surface, guarantee the outlet seal.

1, small flow resistance, ball valve is the smallest of all valve fluid resistance in the class a, even reducing ball valve, the fluid resistance is small.

2, good sealing performance. Ball valve seat (ring) generally use the elastic materials such as teflon, easy to guarantee the seal, and valve sealing force with medium pressure increases.

3, the valve stem seal and reliable. When the ball valve open/close the valve stem only rotate 90 ° movement, so the valve stem packing seal is not easy to be destroyed, and the valve stem pour sealing sealing force with medium pressure increases.

4, do 90 ° rotation of ball valve opening and closing, so easy to achieve automatic control and remote control, ball valve electric device can be configured, pneumatic equipment, hydraulic equipment.

C4 steel ball valve technical specification:

Design standards: GB/T12237, API6D, ASME B16.34

Structure length: GB/T12221, API6D, ASME B16.10

Connecting flange: HG, GB, JB, API, ANSI, ISO, BS, DIN, NF, JIS

Test standard: JB/T9092, GB/T13927, API6D, API598

C4 steel ball valve body material:

Body and bonnet: C4 (00 cr14ni14si4)

Ball: C4 (00 cr14ni14si4)

Stem: C4 (00 cr14ni14si4)

Seal: PTFE, RPTFE, PPL, PEEK...

Pressure rating:

PN1.6-10.0 MpaClass150-600 lb

Nominal size:

DN15 - DN250 1/2 "- 10"

Driving mode:

Handle, worm gear and worm, pneumatic, hydraulic, electric

Corresponding to the C4 model of steel ball valve:

Q41F - 16 C4, Q41F - 25 C4, Q41F - 40 C4, Q41F - 64 C4, C4, Q41F Q41F - 100-100 - lb (C4), Q41F - 300 lb (C4), Q41F - 600 lb (C4)

Applicable medium: the corrosive medium.
